Amflow PX Carbon Pro EMTB

Amflow PX Carbon Pro EMTB

  • Description
  • Features
  • XXX

    • Drive System: Avinox
    • Battery: Avinox Integrated Battery: 800Wh
    • Suspension: 2026 FOX FLOAT X Factory
    • Wheels: 29"
    • Brand: Amflow

XXX

Groundbreaking Lightweight Full Power EMTB. The Amflow range, launched in 2025, set a new benchmark for power-to-weight in eMTBs, and the new PX range takes it further. The Amflow PX Carbon Pro is the 2026/27 flagship model, featuring top-of-the-range running gear and suspension, the powerful Avinox M2S Drive Unit and a mullet wheelset. An absolute weapon on the trail.

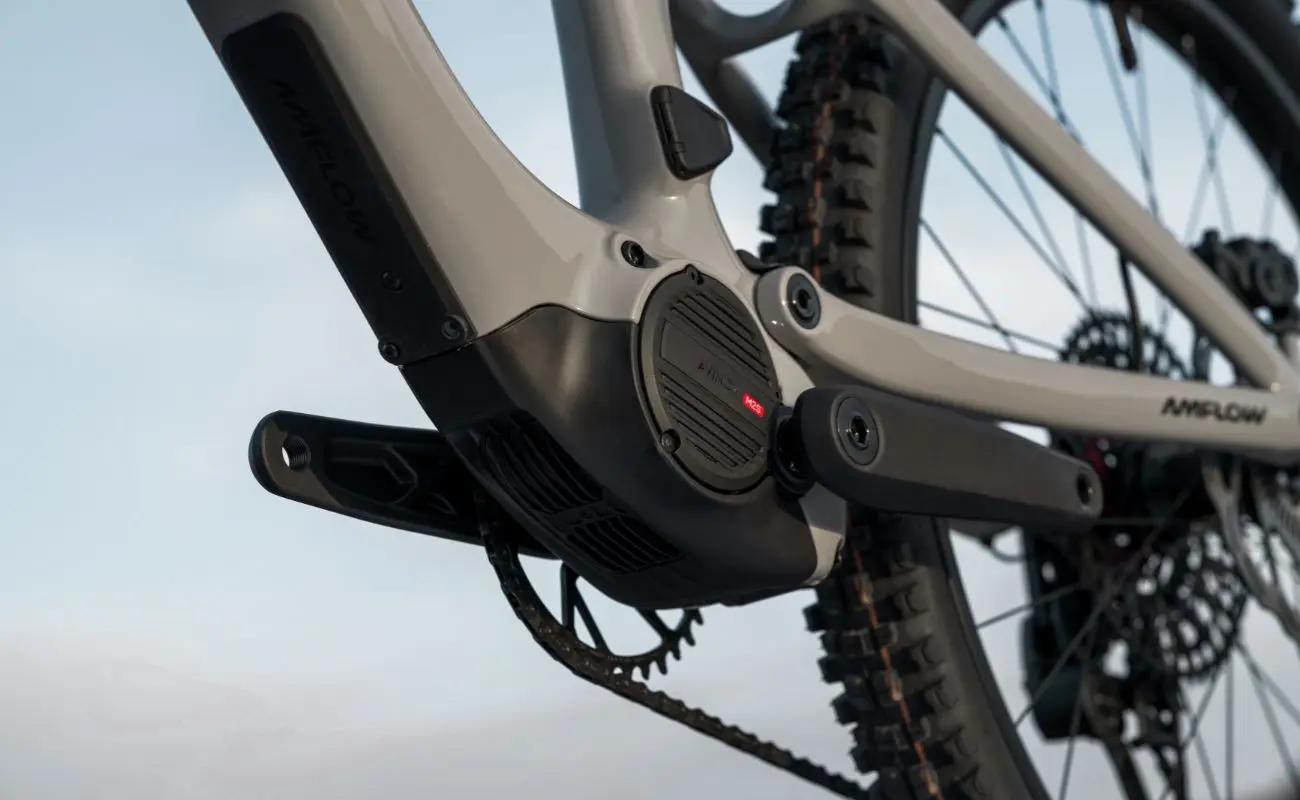

Avinox M2S Drive System. Strong Performance, Advanced Tech. The Avinox M2S Drive System is the new motor from Avinox featuring incredible power and some really advanced tech. The Avinox M2S Drive Unit has 130Nm out of the box and up to 150Nm peak torque for powerful, smooth assistance. Paired with a 700Wh battery, 12A fast charger, 2-inch OLED display, and wireless controllers for a fully connected ride.

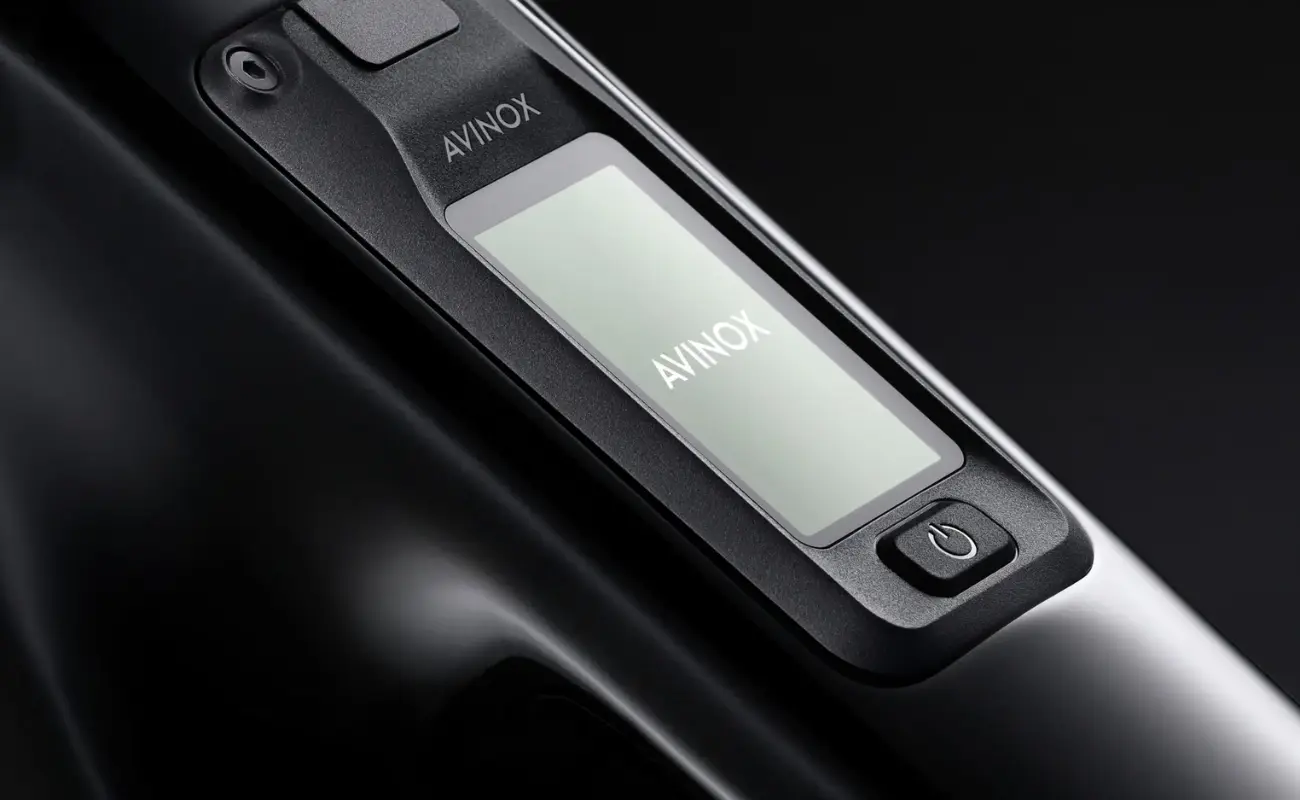

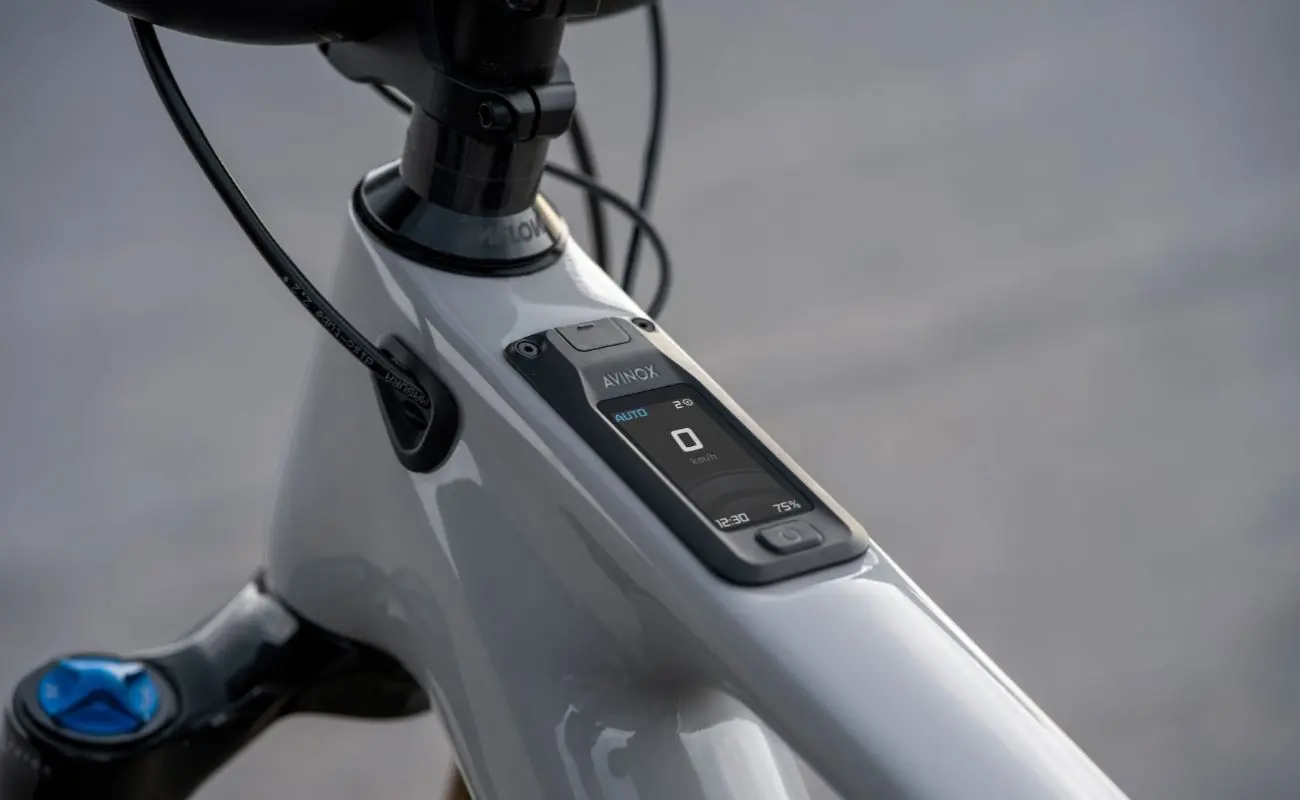

Five Riding Modes. Full Connectivity with Integrated OLED Display. The Amflow PX Carbon Pro features the Avinox 2-inch OLED Control Display, neatly integrated into the top tube for clear ride data at a glance. Wireless handlebar controllers make it easy to change modes and access key functions, while multiple ride modes—including an adaptive Auto mode—deliver smooth, responsive power across any terrain.

Premium Running Gear: FOX Factory Suspension, SRAM X0 Transmission. The Amflow PX Carbon Pro eMTB comes with top-of-the-range running gear. For suspension enjoy a 160mm FOX 36 Factory fork with GRIP X2 and a FOX Float X Factory rear shock (150mm travel). Plus it runs a SRAM X0 Eagle Transmission with AXS controller, powerful Magura Gustav Pro brakes with 203mm rotors, and a carbon mullet wheelset (29” front / 27.5” rear).

Advanced Security with Smart Connectivity. The Avinox system includes integrated anti-theft features via the app, with password protection, movement detection, alerts, and location tracking, plus a convenient Phone Key for automatic unlock. The bike also comes with useful extras, including geometry adjustment options (0.5°/1° headset cups and chainstay flip-chip), dropper travel spacers, Schwalbe Clik Valve set, torque wrench, shock pump, frame protection film, FOX 36 mudguard, and a quick start guide.

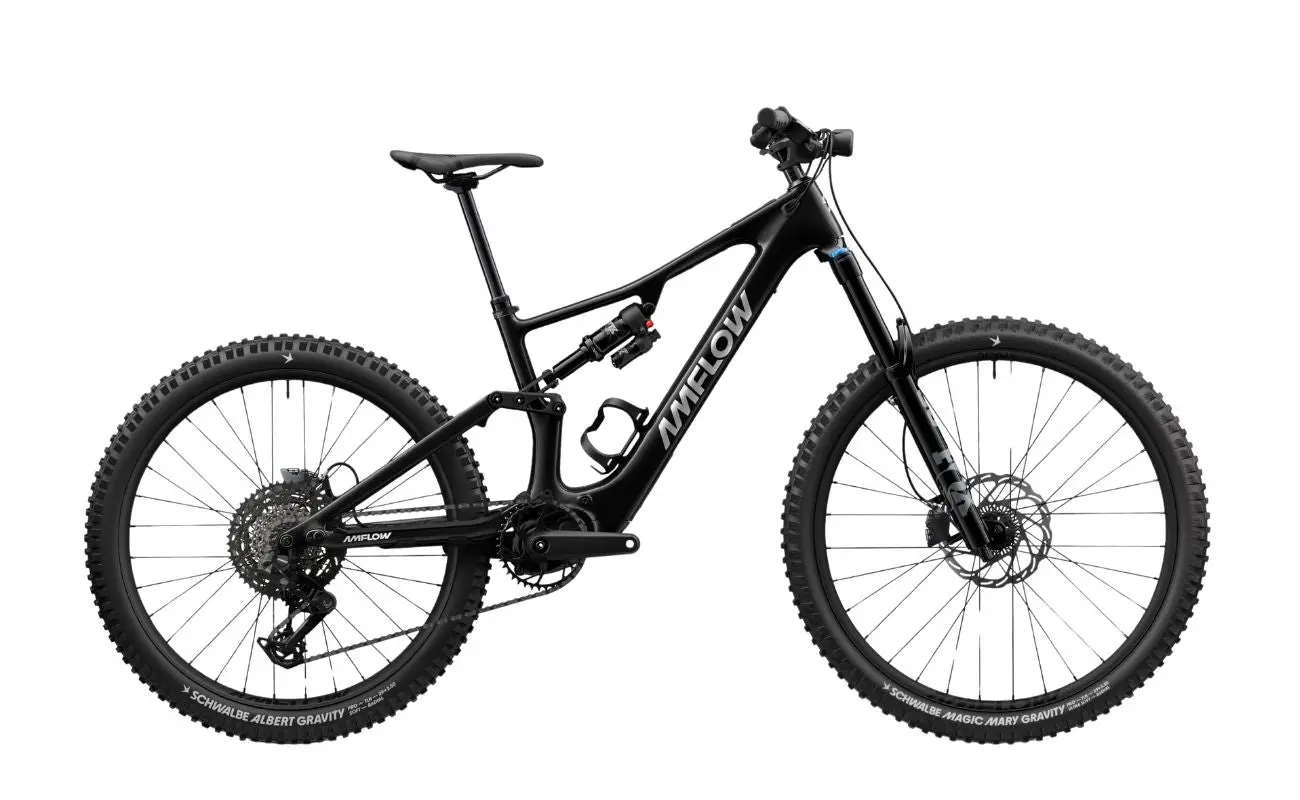

Contact us to order. New stock just arrived and limited sizes immediately available. See the Amflow PX Carbon EMTB if you want a more economical model.


E-Bike Technology


Drive system  Avinox
Motor Avinox M2S Drive Unit: Nominal 130Nm, Peak 150Nm
Battery Avinox Integrated Battery: 700Wh
Charge time Up to 5 hours from flat
Display
Avinox Screen: 2-inch OLED Control Display
Charger
Avinox Fast Charger: 12A/508W


Bike Specifications


Frame Amflow PX Carbon Frame
Sizes
M (45.2cm), L (47.5cm), XL (50cm), XXL (52.5cm)
Fork
FOX 36 Factory,160mm travel, GRIP X2 damper

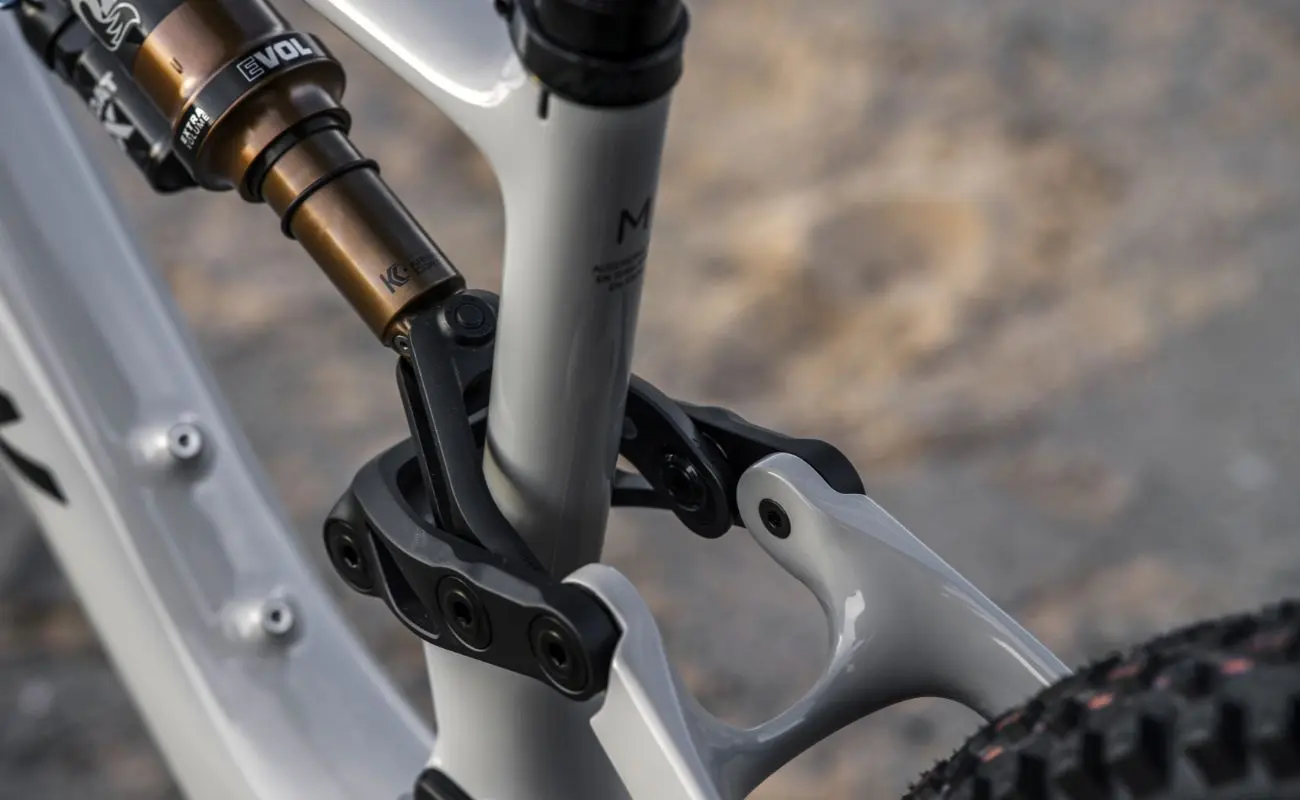

Rear Shock FOX Float X Factory, 2-position lever, custom tune, LSC & LSR adjustment, 210×55mm air shock
Travel 160mm (front) / 150mm (rear)
Wheel size Mullet setup: 29” front / 27.5” rear
Tyres

Front: Schwalbe Magic Mary, 29×2.5 Gravity Pro, Radial
Rear: Schwalbe Albert, 27.5×2.5 Gravity Pro, Radial

Rims Carbon wheelset
Front: 29”, 30mm internal width, 28H, tubeless ready
Rear: 27.5”, 30mm internal width, 32H, tubeless ready
Shifters SRAM AXS Pod Rocker Controller
Rear derailleur SRAM X0 Eagle Transmission Derailleur
Cassette
SRAM XS-1295 Eagle Transmission Cassette, 10–52T
Crankset Avinox SL Crank
(M/L: 155mm; XL/XXL: 160mm)
Bottom bracket Amflow Dropper Remote Lever Mounting Bracket
Chain SRAM X0 Eagle Transmission Chain

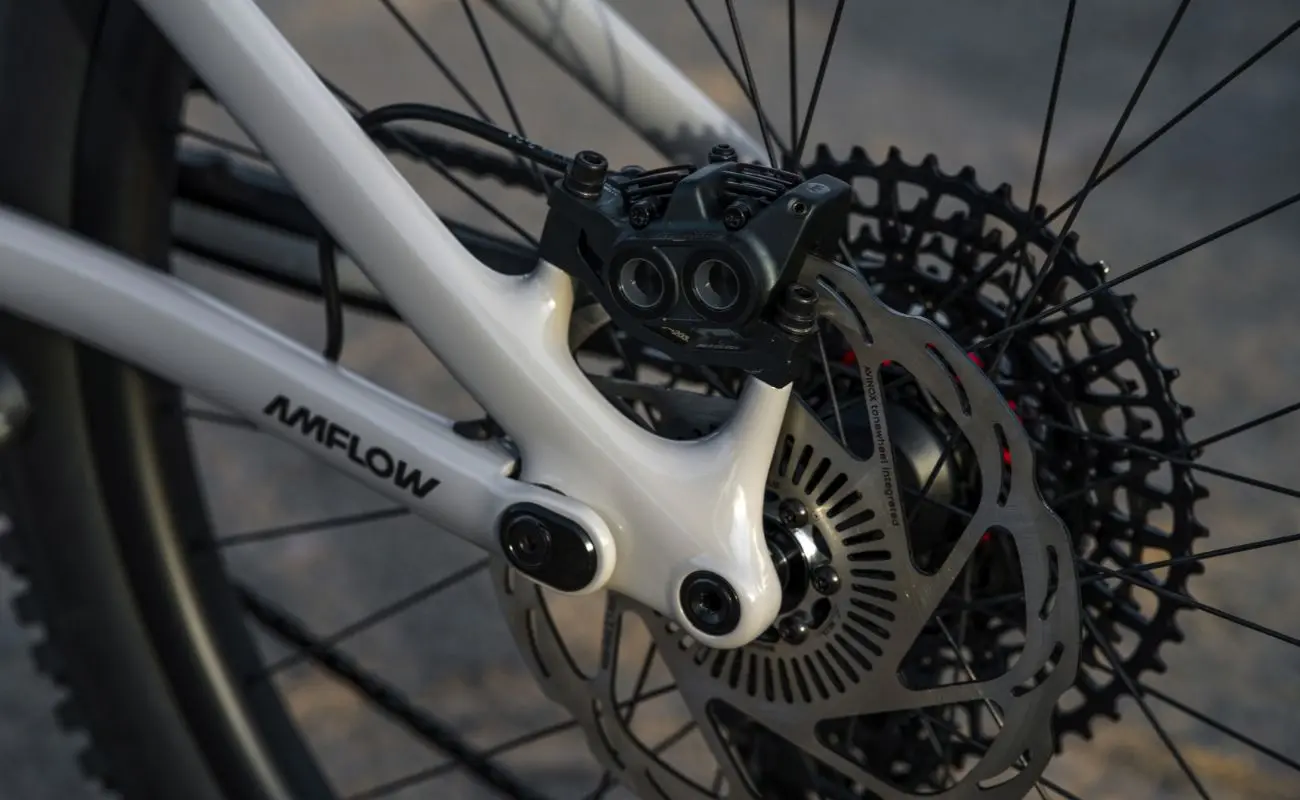

Brakes Magura Gustav Pro Hydraulic Disc Brakes, 4-piston calipers
Rotors Magura Sensor Rotors, 203mm (front & rear, 2.5mm thickness)
Handlebar Amflow Enduro Carbon Handlebar
40mm rise, 800mm width, 35mm diameter
5° upsweep, 9° backsweep
Stem Amflow Mountain Bike Split Stem
35mm length, 35mm clamp diameter
Seatpost Amflow Dropper Post
(M: 190mm, XL: 210mm, XXL: 230mm, adjustable via spacers)
Saddle Amflow Mountain Saddle (Titanium rails)
Pedals n.a
Weight 20.7kg
Carry Capacity 125kg
Warranty Pro Frame - 6 years
Avinox M2S Drive System - 3 years for Pro model
+ 50% off battery replacement if >3000kms
*Note We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
Lights Avinox Front Light, Rear Light
Accessories Amflow bottle cage
Tools Torque Wrench, Shock Pump
Clear Frame Protection Film
Quick Start Guide
Mudguards FOX 36 Mud Guard (Short)
Spares 5/10mm Dropper Post Travel Reducing Spacer
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)


Select Available
From $3,532.16

Original: $10,091.89

-65%
Amflow PX Carbon Pro EMTB

$10,091.89

$3,532.16
