Amflow PL Carbon Pro 800Wh EMTB

Amflow PL Carbon Pro 800Wh EMTB

  • Description
  • Features
  • XXX

    • Drive System: Avinox
    • Battery: Avinox Integrated Battery: 800Wh
    • Suspension: 2026 FOX FLOAT X Factory
    • Wheels: 29"
    • Brand: Amflow


XXX


Groundbreaking Lightweight Full Power EMTB. The 160/150mm dual suspension Amflow range of electric mountain bikes were first released in 2025, setting a new benchmark for power and weight in modern electric mountain bikes. The Amflow PL Carbon Pro eMTB is the flagship model. Its lightweight, full-carbon frame is equipped with the best in suspension and drivetrain and, with its carbon wheels and handlebars, it is the lightest model of the Amflow range, weighing an impressive 20.7kg.

DJI's Avinox Drive System. Strong Performance, Seamless Assistance. Designed and manufactured by DJI, the Avinox Drive System is fully integrated into the Amflow PL, bringing the advanced hardware and software expertise that has made DJI a leader in drones and camera stabilization technology to eMTBs. At the heart of the system is a quiet, smooth motor that provides 105Nm torque and up to 1000W peak power. Equipped with multiple precision sensors and intelligent DJI algorithms, the Avinox Drive Unit provides powerful, smooth pedal assistance, and with the 800Wh battery and Avinox fast charger, you have plenty of options for mountain biking across all terrains.

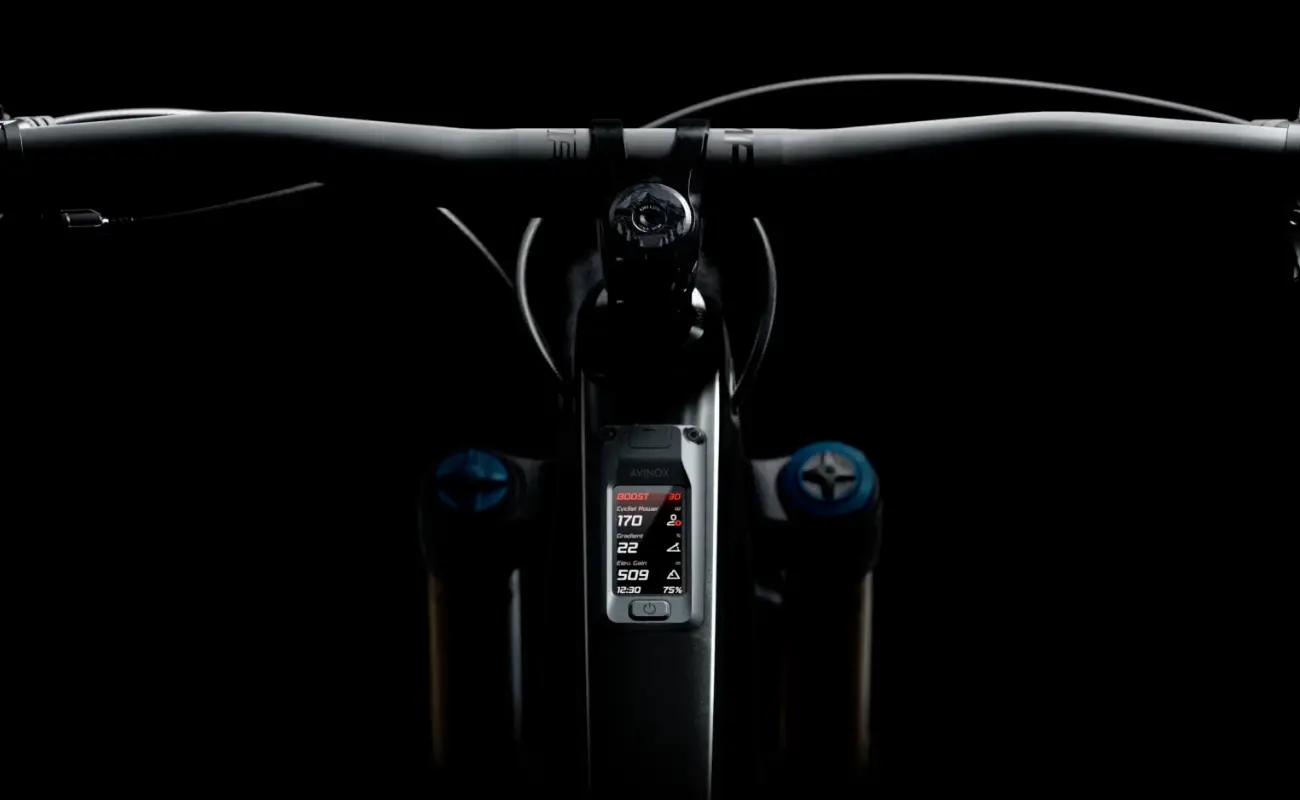

Five Riding Modes, Full Connectivity withBuilt-In Touchscreen Display. The Amflow eMTBs come with a large touchscreen display conveniently built into the top of the top tube. This displays your ride data and range and allows you to easily change screens. Wireless controllers on your handlebars allow you to change ride modes and access other features such as walk assist, auto hold and hill start assist. There are five riding modes and in addition to standard Eco, Trail, and Turbo modes, the DJI Avinox Drive System includes an intelligent Auto mode that adjusts pedal assistance in real time based on terrain and rider position.

Excellent Running Gear: Fox Factory Suspension, SRAM XO Electronic Shifting. The AmflowPL Carbon Pro eMTB comes with some excellent running gear. To complement the modern geometry, you get 160mm Fox 26 Factory forks with the Grip X2 Damper upfront and a 150mm Fox Float X Factory rear shock. For shifting, enjoy the lightning-fast SRAM XO Eagle Transmission drivetrain with the SRAM AXS shift levers, paired with Magura MT7 Pro hydraulic brakes on 203mm rotors. The Carbon Pro model also comes with carbon wheels and with its flip chip you can run either a 29" or 27.5" rear wheel.

Secure Locking System. The Avinox app offers anti-theft features, including password protection and abnormal movement alerts. If the bike is moved, an alarm sounds and a push notification is sent to the app, allowing real-time tracking of location and status. Riders can also use the Phone Key feature to automatically unlock the bike when nearby for added convenience and security.

Contact us to order. Price reduced to clear the remaining stock. See the Amflow PX Carbon Pro if you prefer the Avinox M2S motor.

Delivery interstate and regionally to certain locations is available and extra charges may apply depending on location. Discount vouchers not applicable whilst on sale.




E-Bike Technology

Drive system  DJI Avinox
Motor Avinox M1: 105Nm
Battery Avinox Integrated Battery: 800Wh
Charge time Up to 5 hours from flat
Display
Avinox Screen: 2-inch OLED Control Display
Charger
Avinox Fast Charger: 12A/508W



Bike Specifications*

Frame Amflow PL Carbon Frame
Sizes
M (45.2cm), L (47.5cm), XL (50cm), XXL (52.5cm)
Fork Fox 36 Factory GRIP X2 Damper
Travel 160mm
Rear shock FOX FLOAT X Factory
Wheel size 29"
Tyres

Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Rims Carbon, 29'', 30mm internal width, 28H, tubeless ready
Shifters SRAM AXS Pod Controller

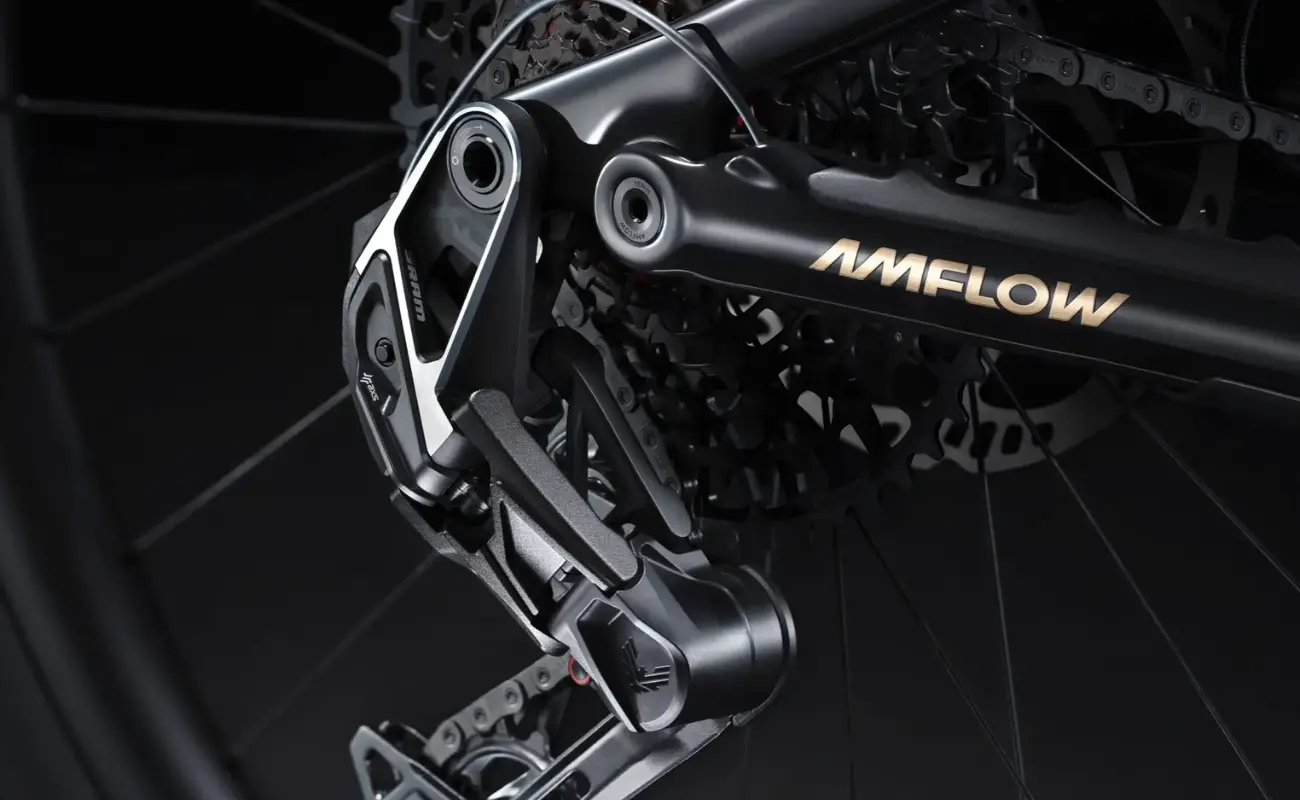

Rear derailleur SRAM X0 Eagle Transmission Derailleur w/ power cable
Cassette
SRAM XS-1295 Eagle Transmission 10-52T
Crankset Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Bottom bracket Integrated in Drive Unit
Chain SRAM X0 Eagle Transmission Flattop Chain
Brakes Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper
Rotors 203mm Storm HC Rotor (front and rear)
Handlebar Amflow Enduro Carbon Handlebar
Stem Amflow Enduro Stem, One-piece CNC
Seatpost Fox Transfer Factory, Travel adjustable in 5mm
Saddle Ergon SM PRO M/L
Pedals n.a
Weight 20.7kg
Carry Capacity 125kg
Max Drop Height 122cm
Warranty Frame - 5 years
Avinox Drive System 2 years
*Note We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.
Select Available
From $3,083.29

Original: $8,809.41

-65%
Amflow PL Carbon Pro 800Wh EMTB

$8,809.41

$3,083.29
