Description
Features

The Orbea Denna ebike isa cutting-edge lightweight gravel e-bike and the Denna M30 is a tough, top value carbon model. With the powerful Shimano EP801 gravel-tuned motor, modern geometry, and massive 50c tire clearance, the Denna is built for adventure, endurance, and versatility.
- Drive System: Shimano mid-drive
- Motor: Shimano EP8
- Battery: Orbea Internal 420Wh
- Performance: Carbon fork, carbon frame, Shimano GRX 12-sp gears
- Brand: Orbea

Carbon comfort; Gain agility and performance

Tough, lightweight, versatile, top value. The Orbea Denna ebike isa cutting-edge gravel e-bike and the Denna M30 is a tough, top value carbon model. Light in weight it features Shimano GRX 12-speed gears and Oquo Road ControlRC25PRO alloy wheelset with sturdy, comfortable componentry. With the powerful Shimano EP801 motor, modern geometry, and massive 50c tire clearance, the Denna is built for adventure, endurance, and versatility.

Powerful, natural assistance with long-range battery. The Denna is equipped with Orbea’s custom-tuned Shimano EP801 motor and RS Gen2 RC firmware which provides up to 85Nm of smooth, natural-feeling power. The Road Control ("RC") tuning ensures the perfect balance of efficiency and assistance for everything from fast pavement to rugged gravel and you can choose between the Gravel and Gravel + profiles depending on where you are riding. The high density 420Wh battery is lightweight and offers up to 3,000m climbing and there is an optional 210Wh range extender.

Comfort for the long haul. Denna’s OMR carbon frame and fork are designed with flex zones to absorb road chatter while maintaining efficiency. The gravel-optimized geometry, wider tire clearance, balanced weight distribution and carefully selected components ensure a stable, comfortable ride on any surface.

Contact us to order. Customisation options available via Orbea's MYO program. See the Denna M20 if you prefer a lighter version with carbon handlebars or the Denna M31e if you prefer the SRAM Rival XPLR AXS 13-speed drivetrain.

E-Bike Technology

System	Shimano
Motor	Shimano EP801
Battery	Orbea Internal 420Wh Opt: Range Extender 210Wh
Display	n.a Opt:Shimano EN600 Cycle Computer
Remote	EN600-L
Charger	Orbea 2.Generation eBike Smart charger 42V/2-4A

Bike Specifications

Frame	Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing
Sizes	XS:40.5; S:43.8; M:47.1; L:50.4; XL:53.7
Colours	Nickel Matt - Carbon Raw Gloss;Escape Green Gloss - Foggy Matt; MYO
Fork	Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1
Rear Derailleur	Shimano GRX RX822 GS
Shifters	Shimano GRX RX610
Cassette	Shimano CS-M7100 10-45t 12-Speed
Crank	Shimano Steps EM600
Chain	Shimano M6100
Chainring	Alloy EP8 42t
Chain Guide	Orbea eBike chainguide
Handlebar	OC Gravel GR31, Reach 70, Drop 110
Handlebar Tape	Orbea Anti-Slippery/Shock Proof
Stem	OC Road Performance RP10, -8º
Brakes	Shimano RX400 Hydraulic disc
Seatpost	OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle	Selle San Marco Shortfit 2.0 Start Up Off Road
Wheels	Oquo Road Control RC25PRO
Tyres	Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
Pedals	n.a
Weight	Approx 14.5kg tbc

Lights	No
Lock	No
Carrier Rack	No
Mudguards	Opt:Front/rear Apollo Orbit Mudguards 55mm NEG
Kickstand	No

E-Bikes $7001 - $10,000

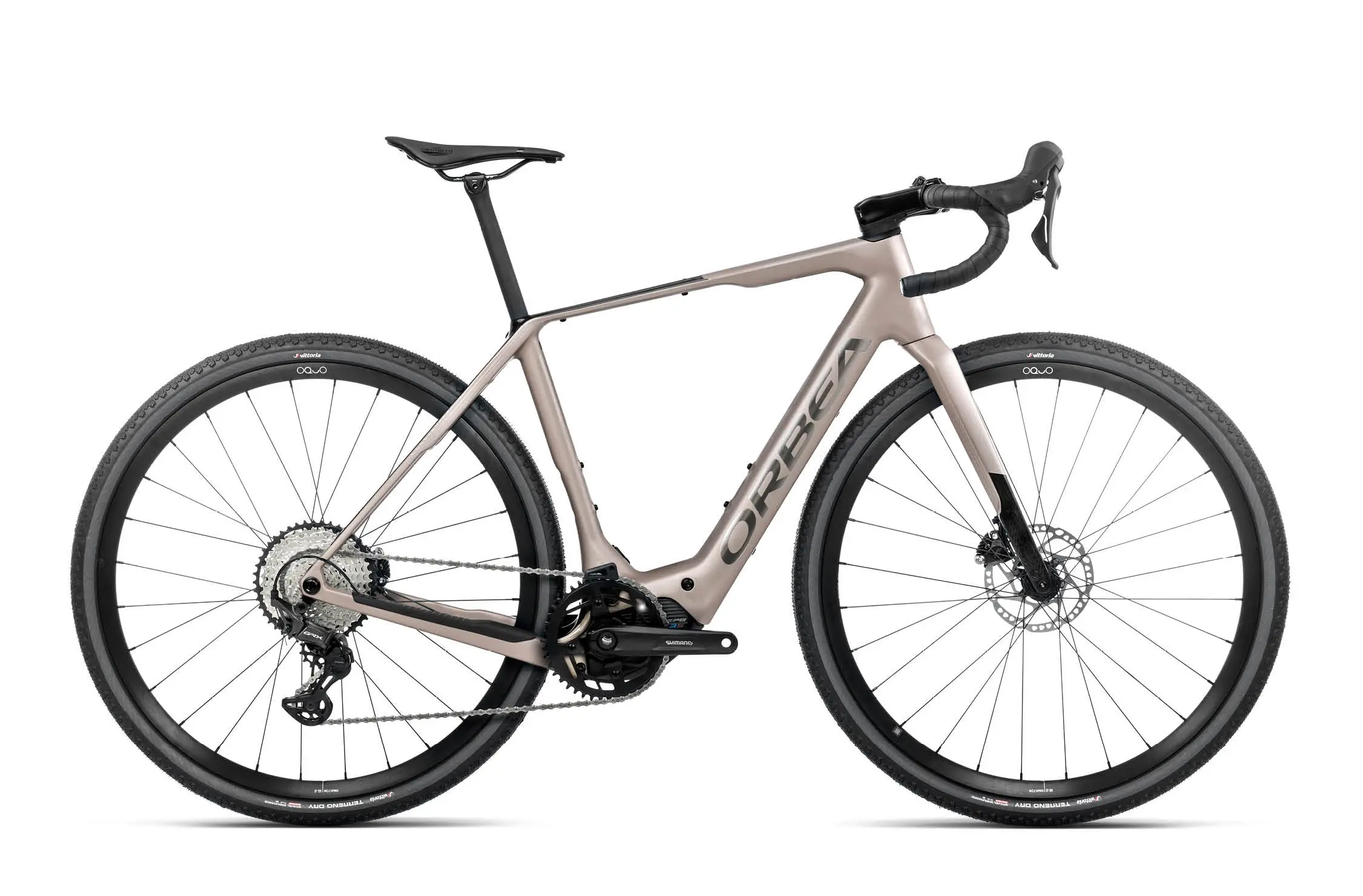

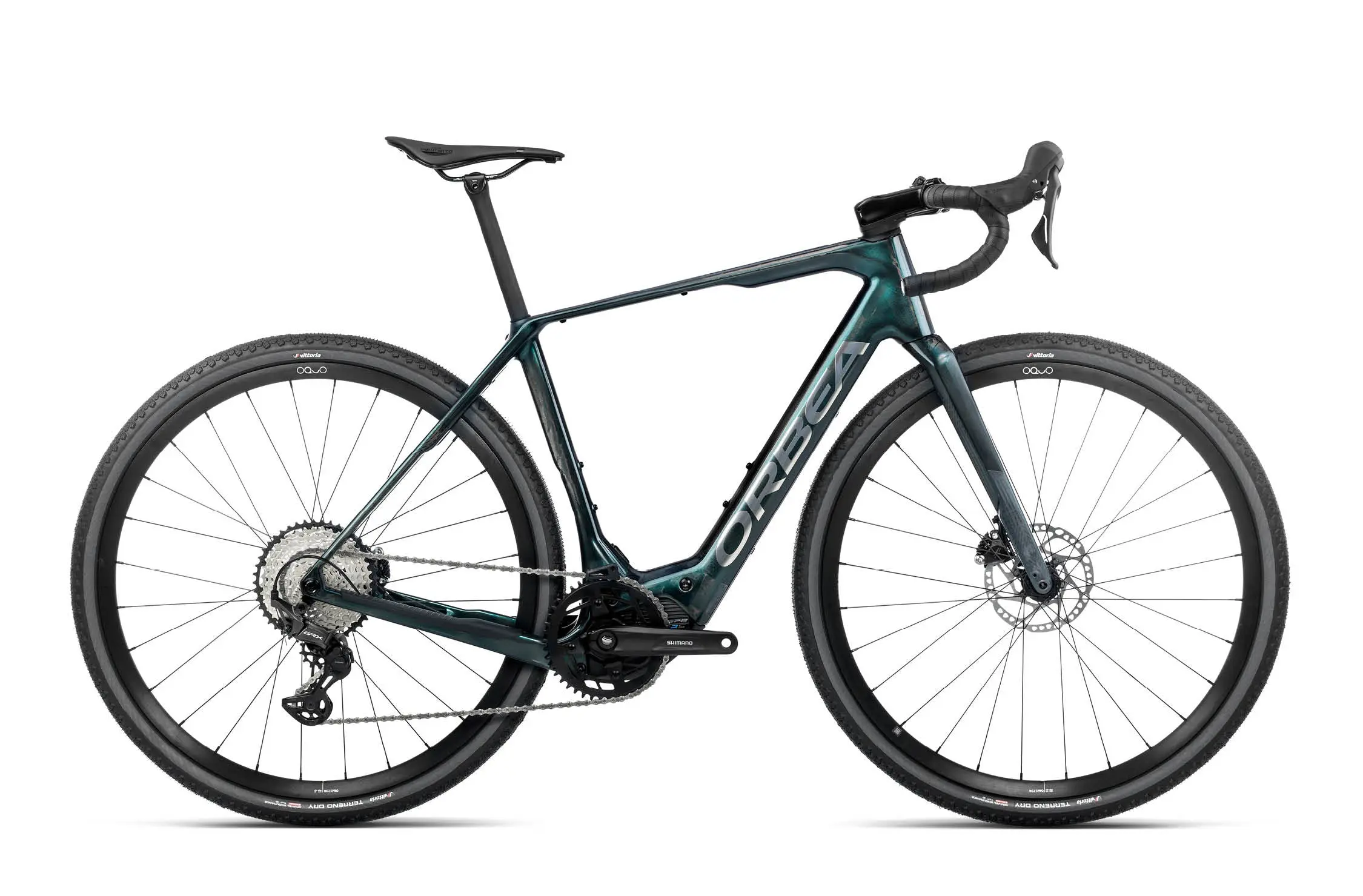

Orbea Denna M30 Carbon Gravel E-Bike

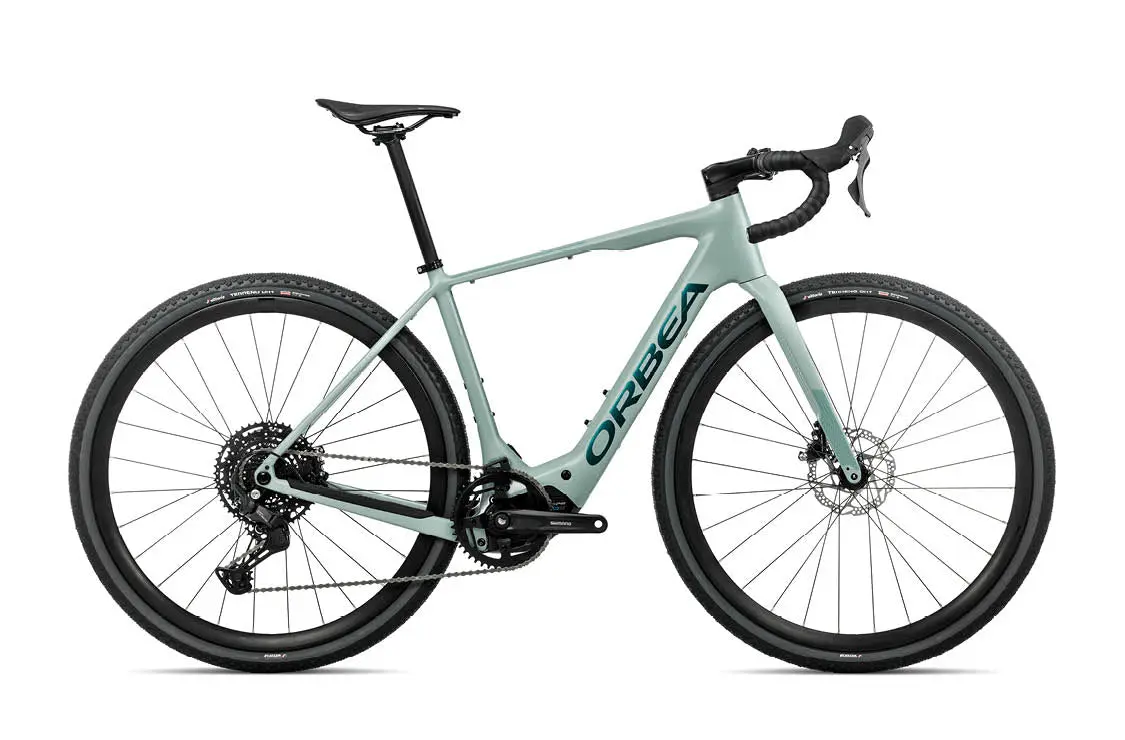

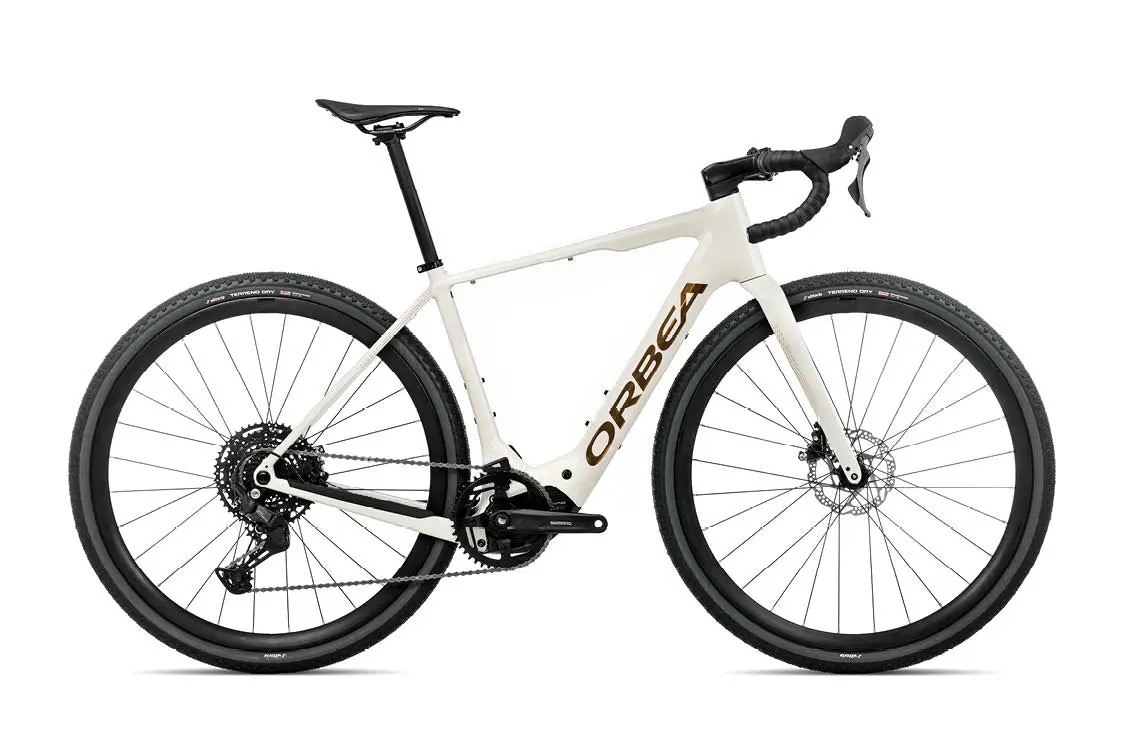

Orbea Denna H50 Gravel E-Bike
