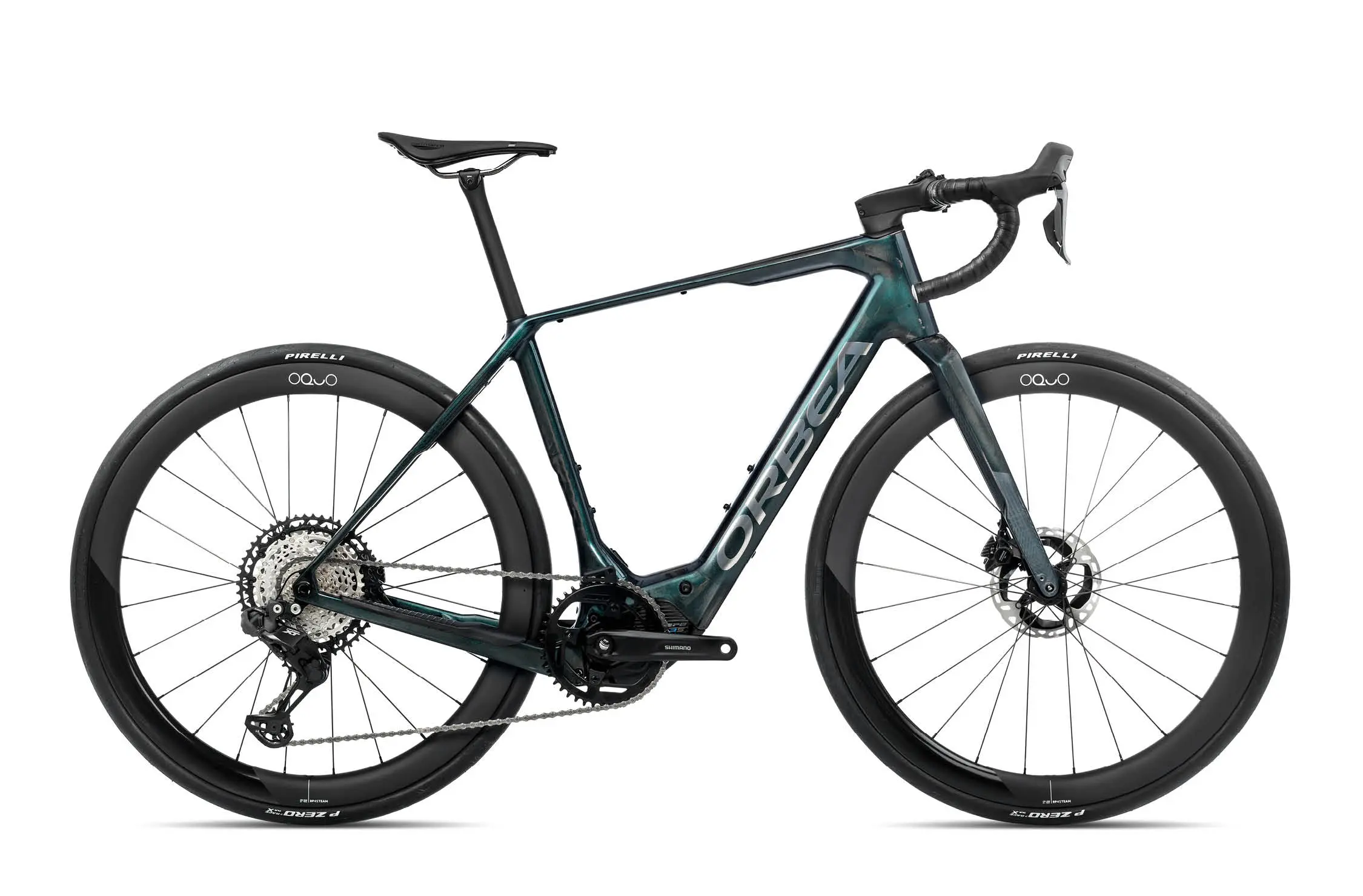

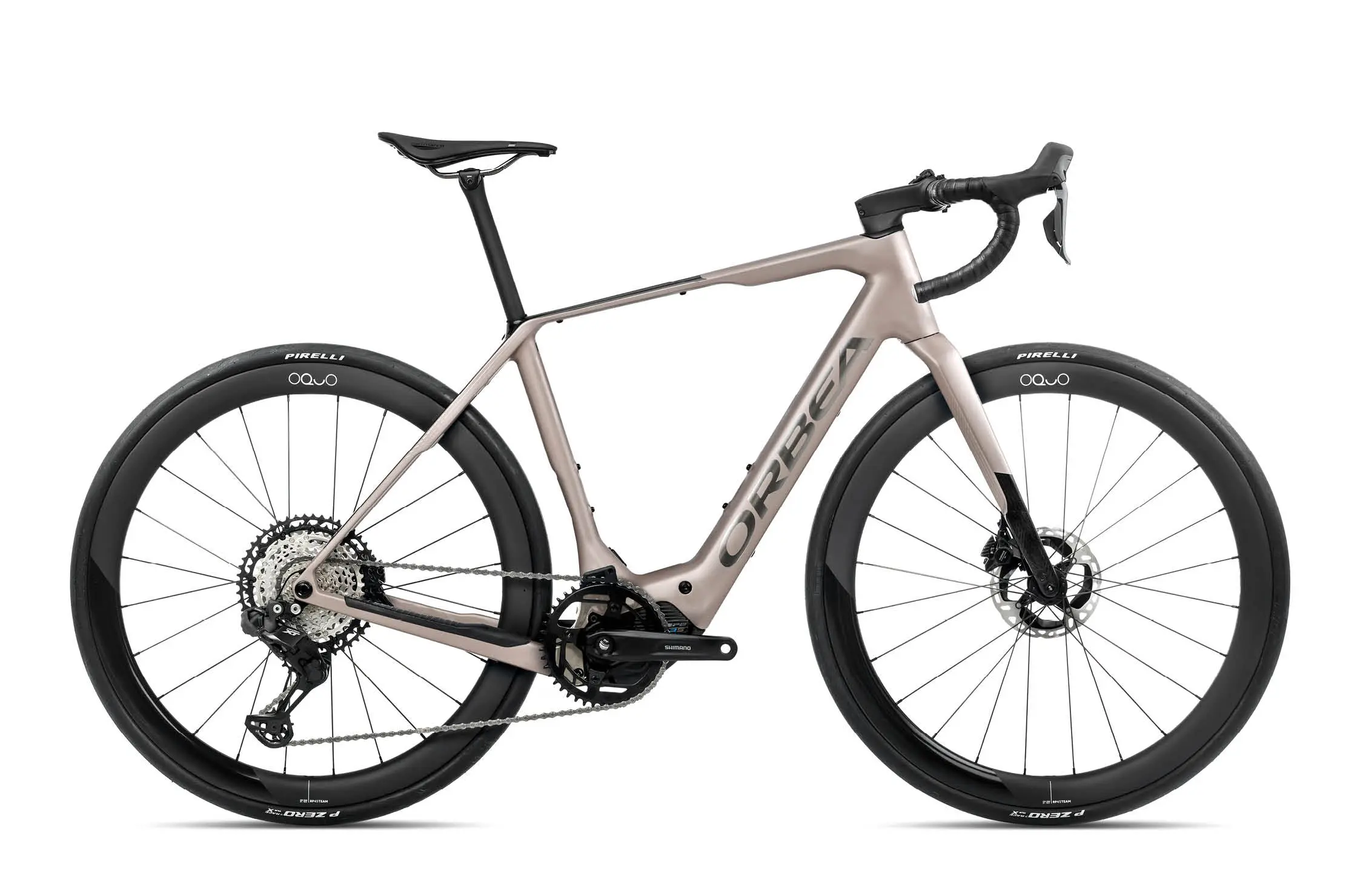

The Orbea Denna ebike isa cutting-edge gravel e-bike and the Denna M10i is the top-of-the range race-ready model, the lightest in the range, featuring the Shimano Dura Ace Di2 groupset and carbon race wheels. With its powerful Shimano EP801 gravel-tuned motor, modern geometry, and 50c tire clearance the Denna is built for adventure, endurance, and versatility.
- Drive System: Shimano mid-drive
- Motor: Shimano EP8
- Battery: Orbea Internal 420Wh
- Performance: Carbon fork, carbon frame, Shimano Dura Ace Di2 12-sp gears
- Brand: Orbea

Carbon comfort; Gain agility and performance

Top-of-the-range, lightweight, race ready. The Orbea Denna ebike isa cutting-edge ultra-light gravel e-bike and the Denna M10i is the top-of-the range race-ready model, featuring the Shimano Dura Ace Di2 12-speed groupset and Oquo Road Performance RP45TEAM carbon wheelset. With the powerful Shimano EP801 motor with gravel tune, modern geometry and 50c tire clearance, the Denna is built for adventure, endurance, and versatility.

Powerful, natural assistance with long-range battery. The Denna is equipped with Orbea’s custom-tuned Shimano EP801 motor and RS Gen2 RC firmware which provides 85Nm of smooth, natural-feeling power. The Road Control ("RC") tuning ensures the perfect balance of efficiency and assistance for everything from fast pavement to rugged gravel and you can choose between the Gravel and Gravel + profiles depending on where you are riding. The high density 420Wh battery is lightweight and offers up to 3,000m climbing plus there is anoptional 210Wh range extender.

Comfort for the long haul. Denna’s OMR carbon frame and fork are designed with flex zones to absorb road chatter while maintaining efficiency. The gravel-optimized geometry, wider tire clearance, balanced weight distribution and carefully selected components ensure a stable, comfortable ride on any surface.

Contact us to pre-order. Customisation options available via Orbea's MYO program. See the Denna M20i if you want electronic gears in a more economical version.

E-Bike Technology

System	Shimano
Motor	Shimano EP801
Battery	Orbea Internal 420Wh Opt: Range Extender 210Wh
Display	n.a Opt:Shimano EN600 Cycle Computer
Remote	EN600-L
Charger	Orbea 2.Generation eBike Smart charger 42V/2-4A

Bike Specifications

Frame	Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing
Sizes	XS:40.5; S:43.8; M:47.1; L:50.4; XL:53.7
Colours	Nickel Matt - Carbon Raw Gloss;Escape Green Gloss - Foggy Matt; MYO
Fork	Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1
Rear Derailleur	Shimano XT Di2 M8150 12s SGS Shadow Plus
Shifters	Shimano R9270
Cassette	Shimano CS-M8100 10-51t 12-Speed
Crank	Shimano Steps EM600
Chain	Shimano M6100
Chainring	Alloy EP8 42t
Chain Guide	Orbea eBike chainguide
Handlebar	OC Road Performance RP11 Carbon, Reach 80, Drop 125, w/Di2 hole
Handlebar Tape	Lizard DSP 2.5mm
Stem	OC Road Performance RP10, -8º
Brakes	Shimano R9270 Hydraulic Disc
Seatpost	OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle	Selle San Marco Shortfit 2.0 Start Up Off Road Xilite
Wheels	Oquo Road Performance RP45TEAM
Tyres	Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
Pedals	n.a
Weight	Approx 14kg tbc

Lights	No
Lock	No
Carrier Rack	No
Mudguards	Opt:Front/rear Apollo Orbit Mudguards 55mm NEG
Kickstand	No
